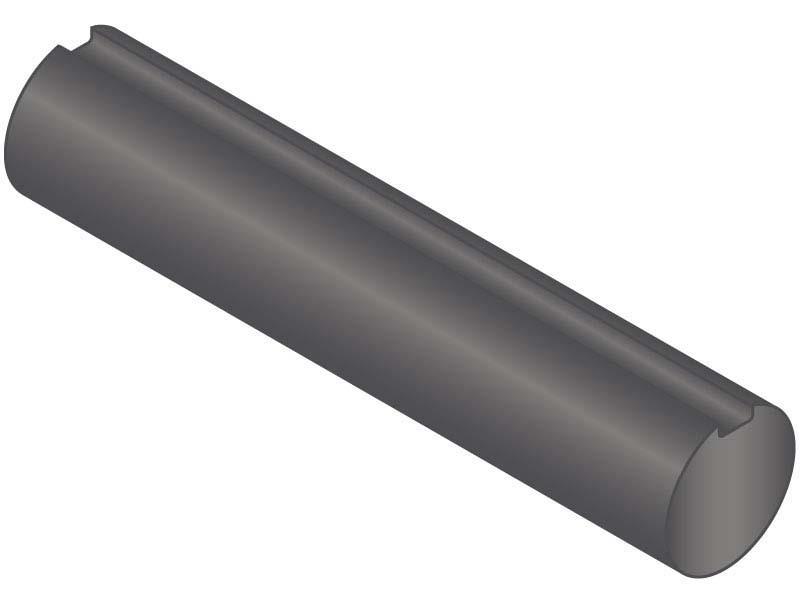

Full Keyed Shaft 1-1/4 Inch x 6

KF-1250-72

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    24.4116
    Finish:
    Plain
    Inch or Metric:
    Inch
    Key Depth Maximum:
    .135
    Keyway:
    1/4" x 1/8"
    Keyway Depth:
    .125
    Keyway Depth Minimum:
    .125
    Keyway Width:
    .250
    Keyway Width Maximum:
    .252
    Keyway Width Minimum:
    .250
    Length:
    6 Ft
    Material:
    C1018
    Outside Diameter:
    1.250
    Outside Diameter Maximum:
    1.250
    Outside Diameter Minimum:
    1.248
    Overall Length:
    72.000
    Overall Length Maximum:
    74.000
    Overall Length Minimum:
    70.000
    Size:
    1-1/4"
    Specification:
    ANSI 17.1
    Tensile Strength Minimum:
    78,000 psi
    Typical Hardness:
    HRB 86
    Yield Strength Minimum:
    63,000 psi

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.
