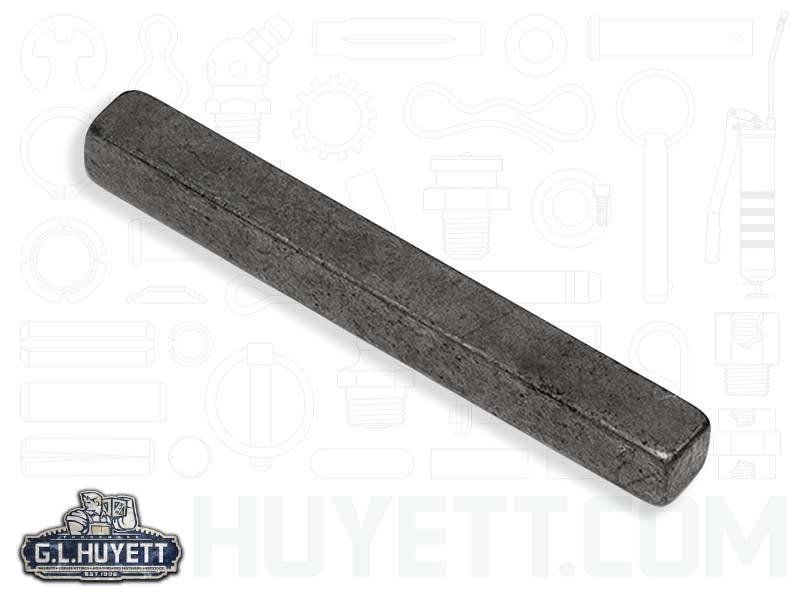

Key 3/16 x 3/16 x 1-3/4 Form B CS PL OV

3501870187-1750

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.017442
    Finish:
    Plain
    Form:
    B
    Height Maximum:
    .190"
    Height Minimum:
    .188" (3/16)
    Height Nominal:
    .188" (3/16)
    Inch or Metric:
    Inch
    Material:
    Carbon Steel
    Material Grade:
    Low Carbon
    Overall Length Maximum:
    1.750" (1-3/4)
    Overall Length Minimum:
    1.720"
    Overall Length Nominal:
    1.750" (1-3/4)
    Shaft Diameter:
    5/8"
    Shape:
    Square
    Size:
    3/16" x 3/16"
    Typical Hardness:
    HRB 50 Min
    Width Maximum:
    .190"
    Width Minimum:
    .188" (3/16)
    Width Nominal:
    .188" (3/16)

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
