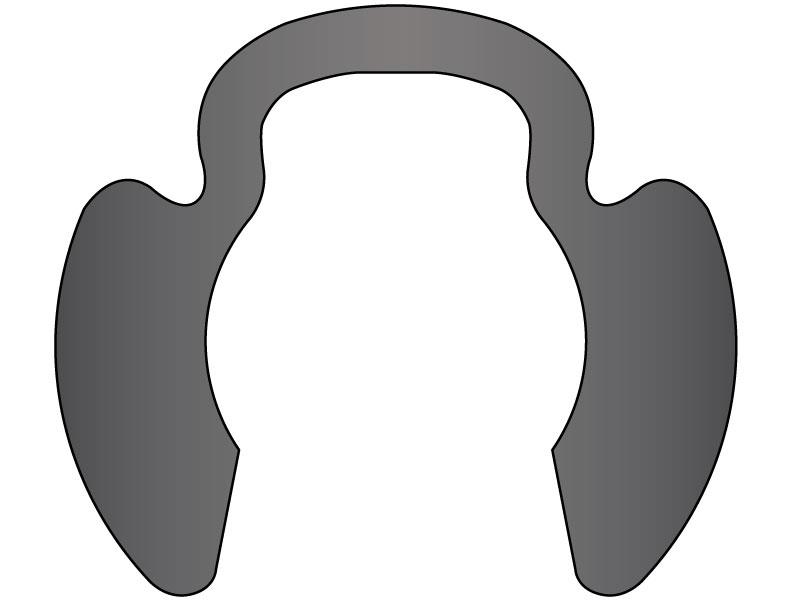

Poodle Ring External 1/4 PH

PO-025

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0009
    Allowable Corner Chamfers:
    .040
    Allowable Corner Radii:
    .050
    Brand:
    Rotor Clip
    Clearance Diameter Released in Groove:
    .520
    Edge Margin:
    .040
    Finish:
    Phosphate
    Free Diameter:
    .188
    Free Diameter Tolerance:
    ±.003
    Full Indicator Movement:
    .003
    Groove Depth:
    .020
    Groove Diameter:
    .210
    Groove Diameter Tolerance:
    ±.006
    Groove Width:
    .039
    Groove Width Tolerance:
    ±.006
    Hardness:
    HRC 47-53
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    PO-25ST PA
    Material:
    Carbon Spring Steel
    Maximum Section:
    .058
    Maximum Thrust Load:
    310 lbs
    RPM Limits:
    65000
    Shaft Diameter:
    1/4"
    Style:
    Stamped
    Thickness:
    .035
    Thickness Tolerance:
    ±.002
    Type:
    Poodle Ring External

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
