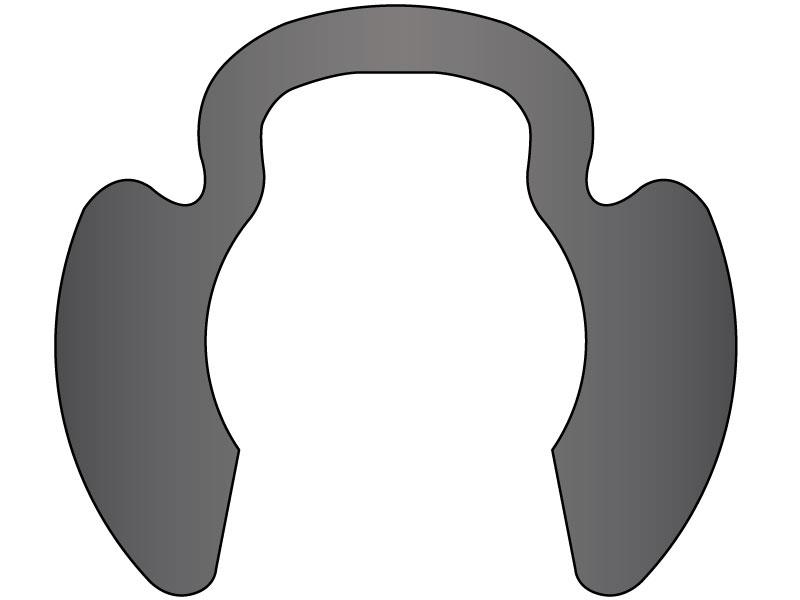

Poodle Ring External 7/16 PH

PO-043

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.00266
    Allowable Corner Chamfers:
    .060
    Allowable Corner Radii:
    .080
    Brand:
    Rotor Clip
    Clearance Diameter Released in Groove:
    .790
    Edge Margin:
    .048
    Finish:
    Phosphate
    Free Diameter:
    .375
    Free Diameter Tolerance:
    ±.004
    Full Indicator Movement:
    .003
    Groove Depth:
    .024
    Groove Diameter:
    .390
    Groove Diameter Tolerance:
    ±.008
    Groove Width:
    .056
    Groove Width Tolerance:
    ±.006
    Hardness:
    HRC 47-53
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    PO-43ST PA
    Material:
    Carbon Spring Steel
    Maximum Section:
    .081
    Maximum Thrust Load:
    600 lbs
    RPM Limits:
    60000
    Shaft Diameter:
    7/16"
    Style:
    Stamped
    Thickness:
    .050
    Thickness Tolerance:
    ±.002
    Type:
    Poodle Ring External

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
