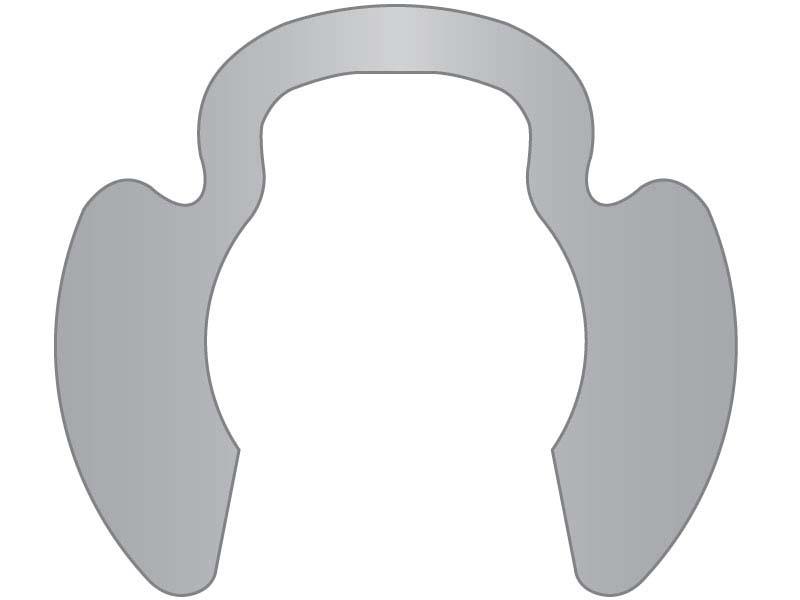

Poodle Ring External 5/16 SS PL

PO-031-SS

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.00146
    Allowable Corner Chamfers:
    .050
    Allowable Corner Radii:
    .065
    Brand:
    Rotor Clip
    Clearance Diameter Released in Groove:
    .630
    Edge Margin:
    .040
    Finish:
    Plain
    Free Diameter:
    .250
    Free Diameter Tolerance:
    ±.003
    Full Indicator Movement:
    .003
    Groove Depth:
    .020
    Groove Diameter:
    .272
    Groove Diameter Tolerance:
    ±.006
    Groove Width:
    .046
    Groove Width Tolerance:
    ±.006
    Hardness:
    HRC 44-51
    Inch or Metric:
    Inch
    Manufacturer Part Number:
    PO-31SS
    Material:
    Stainless Steel
    Maximum Section:
    .074
    Maximum Thrust Load:
    400 lbs
    RPM Limits:
    65000
    Shaft Diameter:
    5/16"
    Style:
    Stamped
    Thickness:
    .042
    Thickness Tolerance:
    ±.002
    Type:
    Poodle Ring External

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
