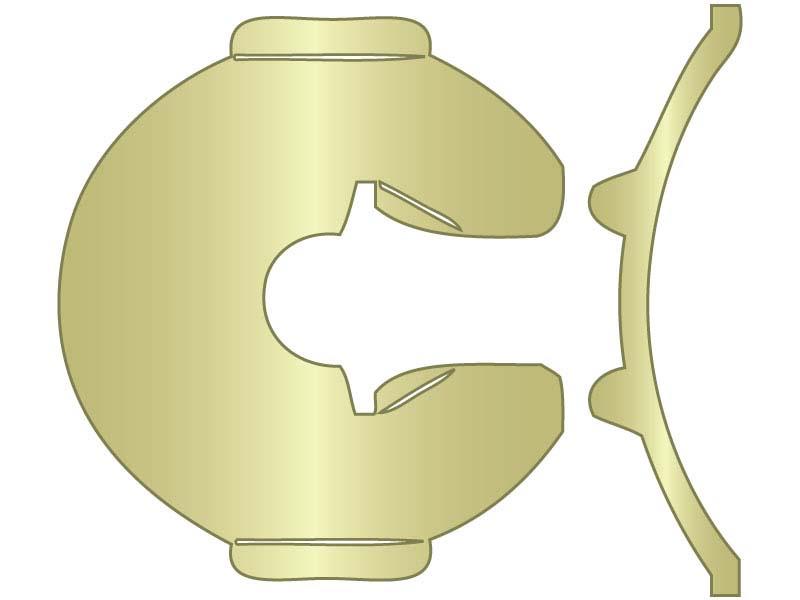

E-Clip Prong-Locked Ext 1/8 Inch CS ZY

EL-012-ZD

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.00019
    Bow Height:
    .050
    Bow Height Tolerance:
    ±.010
    Brand:
    Rotor Clip
    Clearance Diameter Released in Groove:
    .370
    Distance Maximum:
    .040
    Distance Minimum:
    .030
    Edge Margin:
    .043
    Finish:
    Zinc Yellow
    Flat Force:
    30 lbs
    Gap:
    .086
    Gap Tolerance:
    ±.004
    Groove Depth:
    .021
    Groove Diameter:
    .082
    Groove Diameter Tolerance:
    ±.0015
    Groove Width:
    .035
    Groove Width Tolerance:
    +.005 / -.000
    Hardness:
    HR15N 83.5-86
    Inch or Metric:
    Inch
    Length:
    .307
    Length Tolerance:
    ±.010
    Manufacturer Part Number:
    EL-12ST ZD
    Material:
    Carbon Spring Steel
    Shaft Diameter:
    1/8"
    Shaft Diameter Tolerance:
    ±.002
    Style:
    Stamped
    Take Up:
    .010
    Thickness:
    .010
    Thickness Tolerance:
    ±.001
    Type:
    Prong Locked-External

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
