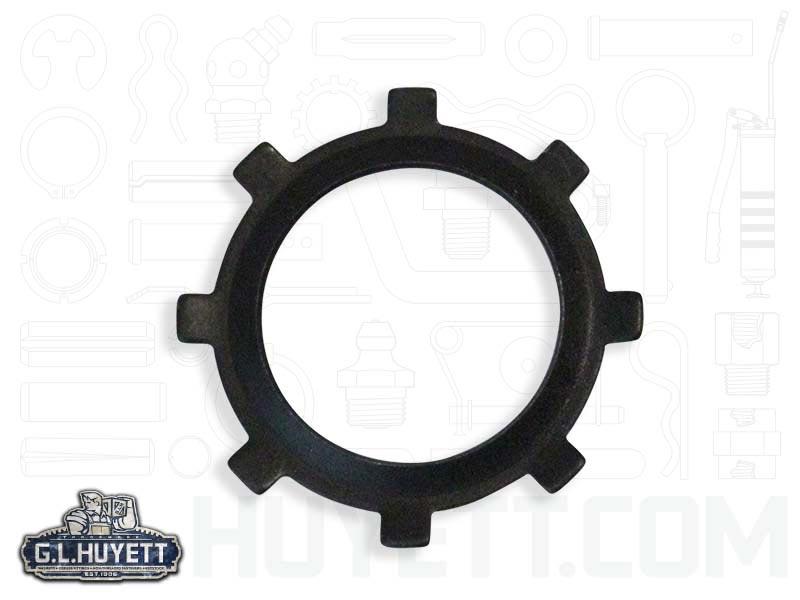

Push-On Ring Internal M17 CS PH

DTI-017

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0006
    Brand:
    Rotor Clip
    Edge Margin:
    1.50
    Finish:
    Phosphate
    Groove Diameter:
    17.15
    Groove Diameter Tolerance:
    +0.075 / -0.00
    Groove Width Minimum:
    0.50
    Hardness:
    HR15N 83-85.5
    Housing Diameter:
    17 mm
    Housing Diameter Tolerance:
    +0.11 / -0.00
    Inch or Metric:
    Metric
    Inside Diameter:
    11.00
    Manufacturer Part Number:
    DTI-17ST PD
    Material:
    Carbon Spring Steel
    Minimum Distance:
    3.00
    Number of Prongs:
    8
    Outside Diameter:
    17.30
    Style:
    Stamped
    Thickness:
    0.30
    Type:
    Push-On Ring - Int

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
