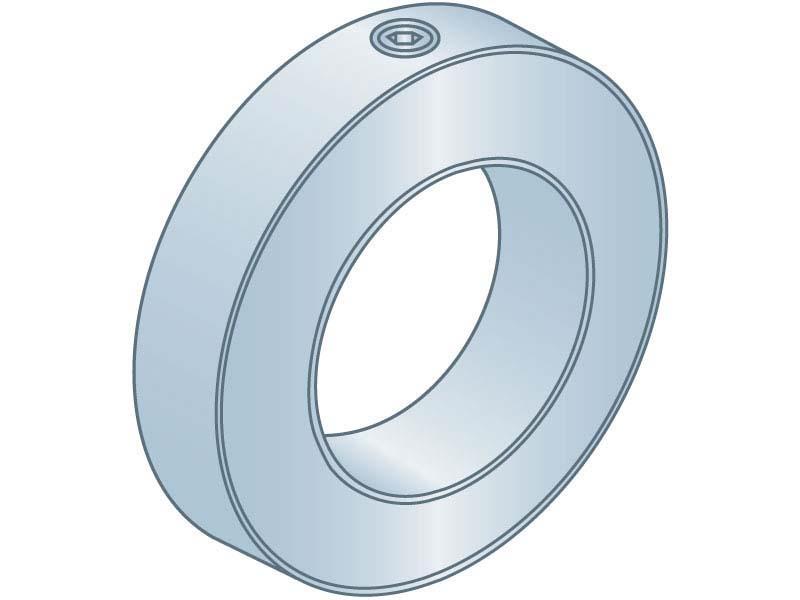

Shaft Collar 1/2 x 1/4 x 9/32 ZC

SC-0250-ZC

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0118
    Bore:
    Round
    Finish:
    Zinc Clear
    Inch or Metric:
    Inch
    Inside Diameter Maximum:
    .2540"
    Inside Diameter Minimum:
    .2510"
    Inside Diameter Nominal:
    .2500" (1/4)
    Material:
    Carbon Steel
    Material Grade:
    Low Carbon
    Outside Diameter Maximum:
    .5050"
    Outside Diameter Minimum:
    .4950"
    Outside Diameter Nominal:
    .5000" (1/2)
    Set Screw Size:
    #10-32
    Thickness Maximum:
    .2862"
    Thickness Minimum:
    .2762"
    Thickness Nominal:
    .2812" (9/32)
    Type:
    Solid

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
