External Open Square Ring 1-3/8 HD PL

XSO-251

GL Huyett

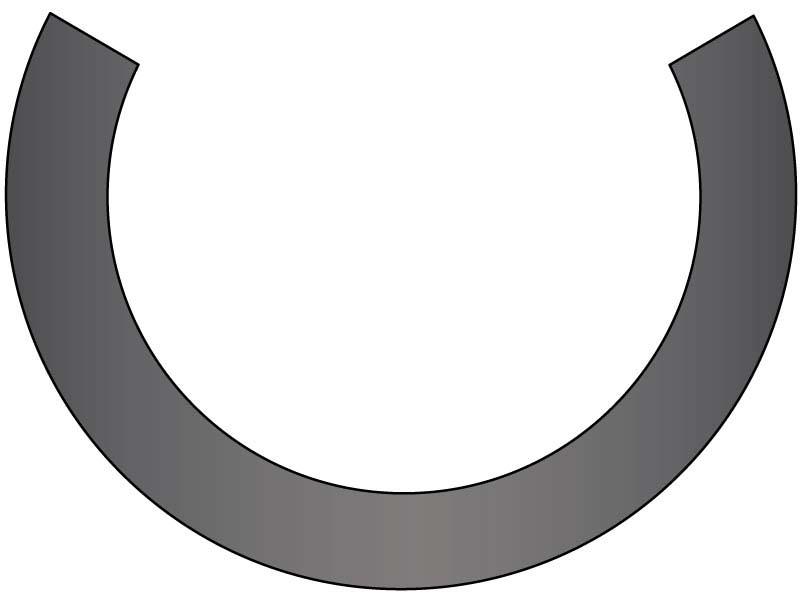

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0249
    Finish:
    Plain
    Free Diameter:
    1.276
    Free Diameter Maximum:
    1.276
    Free Diameter Minimum:
    1.230
    Gap:
    1.125
    Gap Maximum:
    1.125
    Gap Minimum:
    1.080
    Groove Depth:
    .043
    Groove Diameter:
    1.289
    Groove Diameter Maximum:
    1.292
    Groove Diameter Minimum:
    1.286
    Groove Width:
    .180
    Groove Width Maximum:
    .182
    Groove Width Minimum:
    .178
    Inch or Metric:
    Inch
    Material:
    Spring Steel
    Shaft Diameter:
    1.375
    Style:
    Wire
    Type:
    Square Ring - Open Ext
    Wire Cross Section:
    .172
    Wire Cross Section Maximum:
    .175
    Wire Cross Section Minimum:
    .169

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
