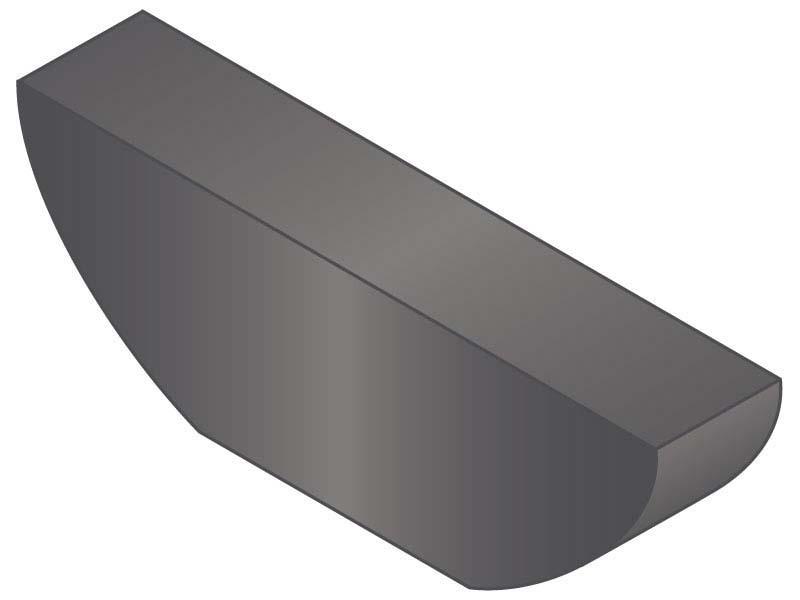

Woodruff Key 1/16 x 1/2 AS PL

WKA-001

GL Huyett

(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    Attribute Name
    Value

    Weight (lbs.)
    0.0013
    Finish:
    Plain
    Hardness:
    HRC 40-50
    Height Maximum:
    .203" (13/64)
    Height Maximum Optional Design:
    .194"
    Height Minimum:
    .198"
    Height Minimum Optional Design:
    .188" (3/16)
    Height Nominal:
    .203" (13/64)
    Height Nominal Optional Design:
    .194"
    Inch or Metric:
    Inch
    Key No:
    204
    Material:
    Carbon Steel
    Material Grade:
    Alloy
    Outside Diameter Maximum:
    .500" (1/2)
    Outside Diameter Minimum:
    .490"
    Outside Diameter Nominal:
    .500" (1/2)
    Overall Length Reference:
    .491"
    Shape:
    Half-Moon
    Specification:
    ANSI B17.2
    Width Maximum:
    .064"
    Width Minimum:
    .063" (1/16)
    Width Nominal:
    .063" (1/16)

    All dimensions, specifications, and tolerances are for reference only and are subject to change without notice.

    Additional Information
    Manufacturer: GL Huyett
