Performance Link Technology™
- Major components Yanmar designed & built to work together
- Engine, front axle & cast iron transmission & final drive
Optional Yanmar-designed front end loader
- Class-leading lift capacity: 825 lbs.
- Standard equipment quick-attach for buckets, forks, etc.
Optional, 60-inch, mid-mount, fabricated, drive-over mower
Dual hydraulic pumps
Smooth hydraulic power steering
One-touch-on/off, electro-hydraulic, independent PTO
Ruggedly built, large, comfortable F/R pedals.

(click image to enlarge)

Quick Overview

When it’s time to upgrade from your ordinary garden tractor & riding lawn mower equipment to something that can tackle a wider range of more challenging and tougher tasks, put the Yanmar 221 on the job. Comfortable and easy to operate, the 221 packs the power you’d expect from a much larger machine. Just like its larger tractor cousins, the SA221 can do serious work with 3-point hitch mounted tillage tools, a front end loader, a powerful hydraulic backhoe and many more tractor attachments.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specs

Powertrain

Battery	540 CCA
Bore and Stroke in. (mm)	2.902x3.03 in. (74x77 mm)
Cooling system	Water cooled
Fuel	Diesel
Gross Power	21.5 HP (16.0 kW)*
Maker	Yanmar
Maximum Torque ft.lbs. (Nm)	39.4 ft.lbs (53.5 Nm)
Model	3TNM74F
Number of cylinders	3
PTO Power at Zero Speed	19.4 HP (14.5 kW)
Rated RPM	3,200 RPM
Total displacement	60.6 cu. In. (0.933 L)
Type	21.5 Engine Horsepower* Diesel Tractor

Capacities

Engine Coolant	3.0 qt. (2.8 L)
Engine Oil	3.1 qt. (2.9 L)
Front Axle Oil	0.79 gal. (3.0 L)
Fuel tank	6.1 gal. (23.0 L)
Transmission Oil	4.1 gal. (15.5 L)

Drivetrain

2WD/4WD engagement	Selectable
Brakes	Wet disc
Transmission type	Hydrostatic

Hydraulics

3-point hitch	Limited Category 1
3-point lift capacity (std.)	660 lbf. (300 kgf)
4-way loader control valve	Standard
Power steering	Fully Hydraulic
Pump capacity (implement) @ Rated	4.3 GPM (16.1 L/min)
Pump capacity (steering) @ Rated RPM	3.7 GPM (14.1 L/min)

Dimensions

Ground Clearance (with R4 Tires)	10.8” (274 mm)
Minimum Turning Radius ft. (m)	7.87" (2.4 m)
Overall Height (with Folded ROPS, R4 Tires)	66.3" (1,683 mm)
Overall height (with R4 Tires)	82.3” (2,090 mm)
Overall Height (with R4 Tires, Top Of Steering Wheel)	51.1" (1,299 mm)
Overall length (with 3PH and R4 Tires)	102.1” (2,594 mm)
Weight (with ROPS, R4 Tires, Full Fluid)	1,537 lbs. (697 kg)
Wheelbase	57.9” (1,400 mm)
Width (with R4 Tires)	47.3” (1,200 mm)

Tire size

Industrial (R4) - Front	18 x 8.5-10 6PR
Industrial (R4) - Rear	26 x 12.0-12 4PR
Turf (R3) - Front	18 x 8.50-10 4PR
Turf (R3) - Rear	26 x 12.0-12 4PR

Traveling speeds

Forward (with R1 Tires)	0 - 8.6 mph (0 - 13.8 kmh)
Reverse (with R1 Tires)	0 - 6.3 mph (0 - 10.0 kmh)

PTO

Mid Shaft	SAE16/32, 15 Splines
Mid Speed/Engine RPM	554/3,200
Mid Type	Independent
Power Take Off (PTO) Power HP (kW)	15.6 HP (11.6 kW)
Rear Shaft Size	35 mm OD, 6 Splines
Rear Speed/Engine RPM	2,057/3,200
Rear Type	Independent
Type	Hydraulic Clutch

Warranty

Attachments	1-year limited warranty
Power train (Engine and transmission core components)	5 years or 2,500 hours
Tractor (Private Individual Usage)	24 months or 2,000 hours

Additional Information

Manufacturer: Yanmar

Ecommerce Websites, Catalogs, and Marketing Services

We Do Not Sell Products

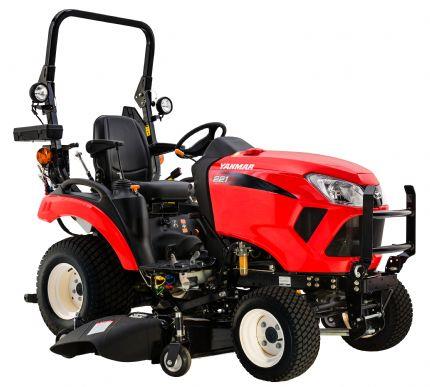

SA221 OPEN PLATFORM TRACTOR WITH ROPS
