Performance Link Technology™
- Major components Yanmar designed & built to work together
- Engine, front axle & cast iron transmission & final drive
Optional Yanmar-designed front end loader
- Class-leading lift capacity: 1,199 lbs.
- Standard equipment quick-attach for buckets, forks, etc.
Optional, 60-inch, mid-mount, fabricated, drive-over mower
Dual hydraulic pumps
Smooth hydraulic power steering
True 3-point hitch position control
One-touch-on/off, electro-hydraulic, independent PTO
Ruggedly built, large, comfortable F/R pedals.

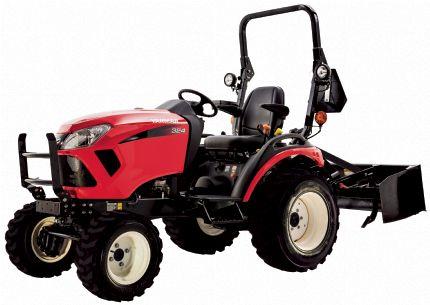

(click image to enlarge)

Quick Overview

Perfect for properties in the 3-to-5-acre range, and for any extensive ground-care application, the SA324 gives you higher horsepower and more implement options in a very compact tractor package, so you can get more done. The available front end loader is attached and removed quickly and easily. Equipped with the available quick-hitch attachment, switching among 3-point mounted tools is also quicker and easier. Like all of the smaller and larger Yanmar tractors, a backhoe rear attachment is also available to greatly expand the SA324's grounds-care and landscaping versatility.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specs

Powertrain

Battery	540 CCA
Bore and Stroke in. (mm)	3.15x3.30 in. (80x84 mm)
Cooling system	Water cooled
Fuel	Diesel
Gross Power	23.4 HP (17.8 kW)*
Maker	Yanmar
Maximum Torque ft.lbs. (Nm)	45.7 ft.lbs (62.0 Nm)
Model	3TNV80F
Number of cylinders	3
PTO Power at Zero Speed	21.7 HP (16.2 kW)
Rated RPM	3,200 RPM
Total displacement	77.2 cu. In. (1.266 L)
Type	24 Engine Horsepower* Diesel Tractor

Capacities

Engine Coolant	3.0 qt. (2.8 L)
Engine Oil	3.6 qt. (3.4 L)
Front Axle Oil	0.92 gal. (3.5 L)
Fuel tank	6.1 gal. (23.0 L)
Transmission Oil	4.1 gal. (15.5 L)

Drivetrain

2WD/4WD engagement	Selectable
Brakes	Wet disc
Transmission type	Hydrostatic, 2 Range Speeds

Hydraulics

3-point hitch	Limited Category 1
3-point lift capacity at 24” (61 cm)	1,209 lbf. (548 kgf)
4-way loader control valve	Standard
Hydraulic Control System	Position Control, Open Center
Power steering	Fully Hydraulic
Pump capacity (implement) @ Rated	3.7 GPM (14.1 L/min)
Pump capacity (steering) @ Rated RPM	4.3 GPM (16.1 L/min)
System Pressure psi (MPa)	2,439 psi (16.7 MPa)

Dimensions

Ground Clearance (with R4 Tires)	8.5” (215 mm)
Minimum Turning Radius ft. (m)	8.5 ft. (2.6 m)
Overall Height (with Folded ROPS, R4 Tires)	70.4" (1,789 mm)
Overall height (with R4 Tires)	85.8” (2,180 mm)
Overall Height (with R4 Tires, Top Of Steering Wheel)	55.3" (1,405 mm)
Overall length (with 3PH and R4 Tires)	105.8” (2,688 mm)
Weight (with ROPS, R4 Tires, Full Fluid)	1,715 lbs. (778 kg)
Wheelbase	63.0” (1,600 mm)
Width (with R4 Tires)	54.6” (1,387 mm)

Tire size

Industrial (R4) - Front	23 x 8.50-12 4PR
Industrial (R4) - Rear	12-16.5 10PR
Turf (R3) - Front	23 x 8.50-12 4PR
Turf (R3) - Rear	33 x12.5-16.5 4PR

Traveling speeds

Forward (with R1 Tires)	mph (kmh) Low: 0-5.9 (0-9.4), High: 0-12.3 (0-19.6)
Reverse (with R1 Tires)	mph (kmh) Low: 0-4.1 (0-6.6), High: 0-8.5 (0-13.7)

PTO

Mid Shaft	SAE16/32, 15 Splines
Mid Speed/Engine RPM	2,057/3,200
Mid Type	Independent
Power Take Off (PTO) Power HP (kW)	18.1 HP (13.5 kW)
Rear Shaft Size	35 mm OD, 6 Splines
Rear Speed/Engine RPM	554/3,200
Rear Type	Independent
Type	Hydraulic Clutch

Warranty

Attachments	1-year limited warranty
Power train (Engine and transmission core components)	5 years or 2,500 hours
Tractor (Private Individual Usage)	24 months or 2,000 hours

Additional Information

Manufacturer: Yanmar
