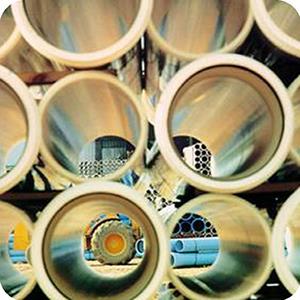

North American Pipe Corporation’s ASTM D2241 Gasketed Integral Bell PVC Pipe product line is manufactured to meet the needs of water distribution and irrigation systems. With top quality raw materials and modern processing technology, our D2241 pipe meets all industry standards in addition to our own rigorous quality control requirements. Our D2241 pipe utilizes Rieber style gaskets throughout the entire product offering to create a leak-free joint.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Nominal Size	Diameter Standard	Class	Pressure Rating (psi)	Gasket Options	Product Options	Certifications
1-1/2	IPS	DR 13.5	315	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
1-1/2	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
1-1/2	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2	IPS	DR 13.5	315	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2-1/2	IPS	DR 13.5	315	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2-1/2	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2-1/2	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
2-1/2	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
3	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
3	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
3	IPS	DR 41	100	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
3	IPS	DR 13.5	315	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
3	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
3	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
4	IPS	DR 13.5	315	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
4	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
4	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
4	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
4	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
4	IPS	DR 41	100	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
6	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
6	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
6	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
6	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
6	IPS	DR 41	100	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
6	IPS	DR 13.5	315	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
8	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
8	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
8	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
8	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
8	IPS	DR 41	100	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
10	IPS	DR 41	100	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
10	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
10	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
10	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
10	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
12	IPS	DR 17	250	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
12	IPS	DR 21	200	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
12	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
12	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
12	IPS	DR 41	100	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
16	IPS	DR 26	160	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
16	IPS	DR 32.5	125	SBR NBR EPDM	Solid Wall	NSF 14 NSF 61
