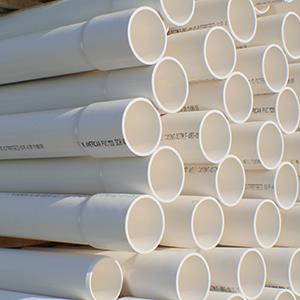

North American Pipe Corporation is the industry leader in solvent weld PVC well casing, offering a broad range of sizes and classes to suit virtually all applications, from small diameter residential to large diameter irrigation wells.

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Nominal Size	Diameter Standard	Class	Pressure Rating (psi)	Product Options	Certifications
2	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
3	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
4	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
4	IPS	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
4	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
4	IPS	DR 32.5	None	Solid Wall Slotted	NSF 14 NSF 61
5	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
5	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
5	IPS	DR 17	None	Solid Wall Slotted	NSF 14 NSF 61
5	IPS	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
6	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
6	IPS	DR 17	None	Solid Wall Slotted	NSF 14 NSF 61
6	IPS	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
6	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
6	IPS	DR 32.5	None	Solid Wall Slotted	NSF 14 NSF 61
6.9 OD	CIOD	DR 17	None	Solid Wall Slotted	NSF 14 NSF 61
6-1/8	CIOD	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
6-1/4	CIOD	DR 27.6	None	Solid Wall Slotted	NSF 14 NSF 61
8	IPS	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
8	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
10	IPS	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
10	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
12	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
12	IPS	DR 21	None	Solid Wall Slotted	NSF 14 NSF 61
14	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
16	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
16	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
4-1/2	IPS	Sch 40	None	Solid Wall Slotted	NSF 14 NSF 61
4-1/2	IPS	DR 17	None	Solid Wall Slotted	NSF 14 NSF 61
4-1/2	IPS	DR 26	None	Solid Wall Slotted	NSF 14 NSF 61
