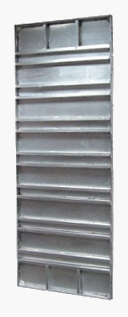

Every Concrete Form and Formworking Panel is Built to Last... In addition to our standard 6-12 formworking panels; we also offer 6-12 Double Bracing formworking panels. This upgrade is constructed with double 1" x 2" tube bracing which provides less weight, easier handling, and more nailing area. This concrete form has the durability for any project residential or lite commercial. Widths from 36" - 1" Heights up to 120" Standard face sheet thickness .125 (Also available in .115) 36" x 96", .125 thickness weighs 89 lbs 36" x 108", .125 thickness weighs 97 lbs Inset Face Sheet: Prevents damage and wear to face sheet edges. Superior weld penetration achieved by placing weld near the edge of the face sheet. Increases overall strength and life of panel without leaving unsightly seams. Corner gussets added to reinforce corner. Bracing: "Boxed" design makes it impossible for concrete to enter and accumulate inside brace. Ends are welded on sides and tops to strengthen the form and ensure concrete cannot enter brace. Extruded Braces are serrated to prevent slipping and aid in handling, yet will not accumulate concrete. Siderail: Heavy duty extruded aluminum extends life of panel. Dual point contact for ease of alignment. Notch for inset face sheet strengthens panel. Bushings: Heat-treated and plated bushings are held in place by heavy duty ¼ inch solid steel plated rivets. Crowned bushing allows for easy release of wedges. Bushings increase strength of siderail, not weaken it like swedged bushings. Rivets are flush with siderail to reduce accumulation of concrete and make cleaning easier. Welding: Continuous weld around concrete form, including over top of bracing. Full panels are welded with computerized Robot to ensure consistency and quality. Certified Quality Control Program.
