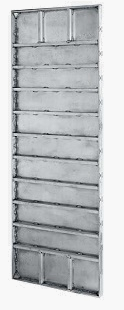

This hole pattern makes the 8-8 / 8-24 ideal in markets converting from block to poured concrete walls. This allows the contractor to easily accomplish 8" jumps. Widths from 36"- 1" Heights up to 120" Standard face sheet thickness .125 (Also available in .115) Brace is a 1 x 2 tube 36" x 96", .125 thickness weighs 84 lbs 36" x 108", .125 thickness weighs 90 lbs Inset Face Sheet: Prevents damage and wear to face sheet edges. Superior weld penetration achieved by placing weld near the edge of the face sheet. Increases overall strength and life of panel without leaving unsightly seams. Corner gussets added to reinforce corner. Bracing: "Boxed" design makes it impossible for concrete to enter and accumulate inside brace. Ends are welded on sides and tops to strengthen the form and ensure concrete cannot enter brace. Extruded Braces are serrated to prevent slipping and aid in handling, yet will not accumulate concrete. Siderail: Heavy duty extruded aluminum extends life of panel. Dual contact for ease of alignment. Notch for inset face sheet strengthens panel. Bushings: Heat-treated and plated bushings are held in place by heavy duty ¼ inch solid steel plated rivets. Crowned bushing allows for easy release of wedges. Bushings increase strength of siderail, not weaken it like swedged bushings. Rivets are flush with siderail to reduce accumulation of concrete and make cleaning easier. Welding: Continuous weld around concrete form, including over top of bracing. Full panels are welded with computerized Robot to ensure consistency and quality. Certified Quality Control Program.
