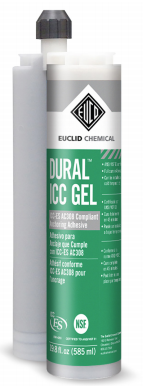

DURAL ICC GEL is a NSF/ANSI 61 certified, building code compliant, high-performance hybrid anchoring adhesive with an extended installation temperature range from 5°F to 104°F (-15°C to 40°C). It has been tested for use with threaded rod and reinforcing bar for cracked and uncracked concrete in accordance with ACI 355.4 and ICC-ES AC308, and has sustained load resistance up to 194°F (90°C).

(click image to enlarge)

Quick Overview

ICC-ES ESR-4255 evaluation report for cracked and uncracked concrete Certified to the requirements of NSF/ANSI Standard 61 for Drinking Water System Components Service temperature range under short term loading conditions of 5°F to 302°F (-15°C to 150°C) Full cure in 45 minutes at 77°F (25°C) ambient temperature Resists sustained loads up to 194°F (90°C) Withstands freeze-thaw conditions Resists static, wind, and earthquake loading in tension and shear All season hybrid anchoring material for dry, damp & water saturated concrete

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Specifications / Compliances Complies with IBC/IRC 2015, 2012, 2009, and 2006 and FBC/ICC ESR-4255 ASTM C881-14 Types I, II, IV*, and V, Grade 3, Classes A, B, and C (*Classes A & B only) NSF/ANSI Standard 61 Packaging DURAL ICC GEL is packaged in cases of 20 oz (591 mL) cartridges, 12 cartridges per case The mix ratio is 3:1 by volume Appearance: Part A is light gray, Part B is black, mixed color is gray

Additional Information

Manufacturer: Euclid Chemical

For More Information on the DURAL ICC GEL Anchoring Adhesive, [Click Here] to Link to Manufacturer Web Site
