ArcVoid with WallVoid

ArcVoid with WallVoid

VoidForm, Inc.

(click image to enlarge)
Quick Overview

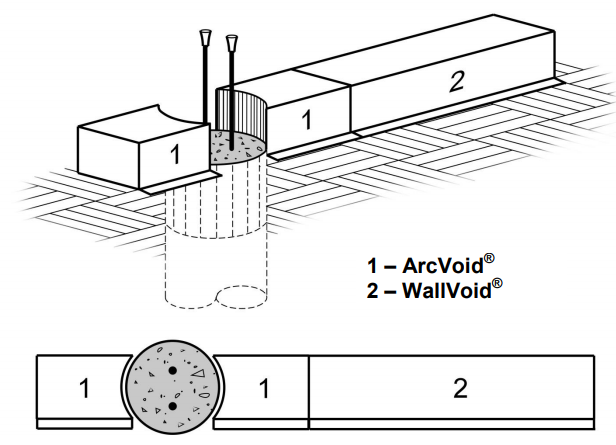

    1. Function: Properly creates void space around the upper portion of the drilled pier at its intersection with the wall or grade beam.

    2. Description: Pre-manufactured, non-field-cut, sealed carton void form, secured with glue (with or without staples), having a curved, radial, vertically-supported edge adjacent to the drilled pier that conforms to the pier diameter.

    3. Composition:

      a. Exterior: Corrugated paper with a moisture-resistant outer surface.

      b. Interior: Corrugated paper arranged in a uniform, cellular configuration.

    4. Strength: Capable of sustaining specified vertical loads until they become self-supporting, while maintaining full void depth as indicated on the drawings, or as recommended by the manufacturer.

    5. Accessories: Used in conjunction with permanent soil retainers that prevent soil from entering into the specified void space after the structural degradation of the void form.

    6. Installation: Install in accordance with the manufacturer's recommendations. Protect the carton void forms from moisture and damage prior to concrete placement.
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Additional Information
Manufacturer: VoidForm, Inc.
