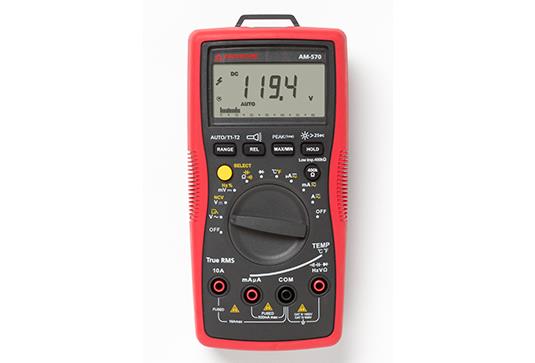

The Amprobe AM-570 autoranging digital multimeter is one of the best digital multimeters in its class. Designed for professional electricians who need to maintain service or troubleshoot advanced electrical systems in the most demanding environments, the AM-570 high voltage multimeter is packed full of professional digital multimeter features. With True-rms accuracy for measuring voltage in noisy environments, dual thermocouples for differential temperature measurements, low impedance mode to detect stray voltage, and a low pass filter to accurately measure the voltage on variable frequency drives, the AM-570 takes care of quick go/no-go checks with a single tool.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

AC Voltage: 6.000 / 60.00 / 600.0 / 1000 V ±(1.0% Rdg + 3 LSD) @ 45 Hz to 400 Hz, 0 V to 600 V
DC Voltage: 600.0 mV, 6.000 / 60.00 / 600.0 / 1000 V ±(0.5% Rdg + 2 LSD) @ 6 V to 600 V ranges
Resistance: 600.0 Ohms, 6.000 / 60.00 / 600.0 kOhms, 6.000 / 60.00 MOhms ±(1.0% Rdg + 2 LSD) @ 6 kOhms to 600 kOhms ranges
AC Current: 600.0 µA / 6000 µA, 60.00 mA / 500.0 mA / 10.00 A ±(1.2% Rdg + 5 LSD) @ 600 µA to 6000 µA ranges, 45 Hz to 400 Hz
DC Current: 600.0 µA / 6000 µA, 60.00 mA / 500.0 mA / 10.00 A ±(1.0% Rdg + 2 LSD) @ 600 µA to 6000 µA ranges
Frequency: 60.00 / 600.0 Hz, 6.000 / 60.00 / 600.0 kHz, 6.000 / 60.00 MHz ±(0.1% Rdg + 3 LSD)
Duty Cycle: 10.00% to 90.00% ±(1.2% Rdg + 30 LSD) @ 5Hz to 2 kHz
Capacitance: 60.00 / 600.0 nF, 6.000 / 60.00 / 600.0 / 6000 µF, 60.00 mF ±(3.0% Rdg + 5 LSD) @ 600 nF to 60 µF ranges
Temperature: -40 °F to 1832 °F / -40 °C to 1000 °C °F: ±(1.0% rdg + 12) @ >104 °F to 752 °F / °C: ±(1.0% rdg + 8) @ >40 °C to 400 °C

Additional Information

Manufacturer: Amprobe
