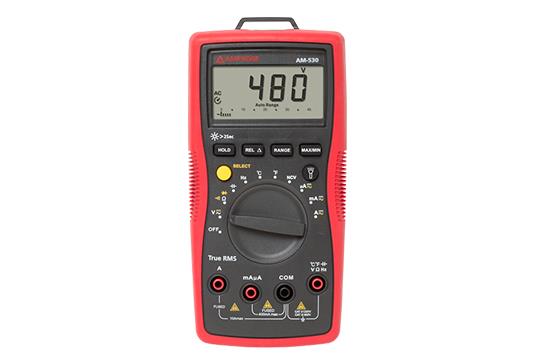

AM-530 True-rms Electrical Contractor Multimeter

4018651

Amprobe

The Amprobe AM-530 autoranging digital multimeter is the multimeter of choice for professional electrical contractors. The AM-530 is a True-rms digital multimeter so it accurately measures voltage on systems affected by harmonics. With its full menu of digital multimeter features, you can use it to: measure and verify the presence of voltage before connecting new equipment or performing repairs; run new wiring; check continuity of electrical connections; identify blown fuses; troubleshoot motors or check transformers. The CAT III 600 V safety rating provides an extra measure of safety for high voltage multimeter applications. Its built-in flashlight helps you see wire colors in the dark and “third hand” probe holder gives you an extra hand when you need it.
(click image to enlarge)
Quick Overview
    Interested in this item or want more information?
    Call Mon. through Fri. 8:00 AM - 5:00 PM PST
    Phone: 714-573-4083
    Email: sales@48ws.com

    Can't find what you want? Give us a call and we can help you find it.
    Details
    • AC Voltage: 400 mV, 4.000 / 40.00 / 400.0 / 600 V ±(1.0 % Rdg + 3 LSD) @ 45 Hz to 400 Hz, 4 V to 400 V ranges
    • DC Voltage: 400 mV, 4.000 / 40.00 / 400.0 / 600 V ±(0.8% Rdg + 1 LSD) @ 4 V to 400 V ranges
    • Resistance: 400.0 Ohms, 4.000 / 40.00 / 400.0 kOhms, 4.000 / 40.00 MOhms ±(1.0% Rdg + 2 LSD) @ 4 kOhms to 400 kOhms ranges
    • AC Current: 400.0 / 4000 µA, 40.00 / 400.0 mA, 4.000 / 10.00 A ±(1.2% Rdg + 3 LSD) @ 400 µA to 400 mA ranges, 45 Hz to 400 Hz
    • DC Current: 400.0 / 4000 µA, 40.00 / 400.0 mA, 4.000 / 10.00 A ±(1.0% Rdg + 2 LSD) @ 400 µA to 400 mA ranges
    • Frequency: 10 Hz to 10 MHz ±(0.1% Rdg + 4 LSD)
    • Capacitance: 40.00 / 400.0 nF, 4.000 / 40.00 / 400.0 / 4000 µF ±(3.0% Rdg + 5 LSD) @ 400 nF to 40 µF ranges
    • Temperature: -40 °F to 1832 °F, -40 °C to 1000 °C, °F: ±(1.8% rdg + 6 °F) @ >32 °F to 212 °F, °C: ±(1.2% rdg + 3 °C) @ >0 °C to 100 °C
    Additional Information
    Manufacturer: Amprobe
