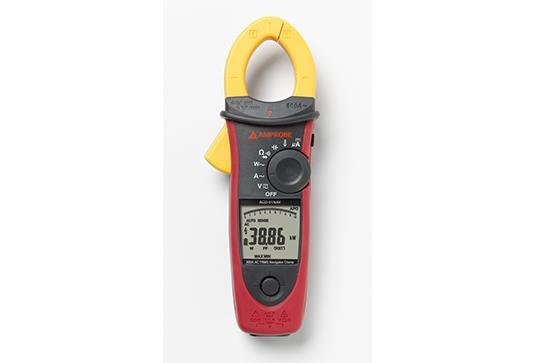

This versatile clamp-on power meter offers a full range of diagnostics, including those that HVAC technicians need most—volts, amps, resistance, capacitance, DC microamps, in-rush current and temperature. A great clamp-on multimeter choice for troubleshooting or maintaining air conditioning or motor efficiency, measuring phase rotation, and identifying harmonics. Convenient joystick enables quick single-handed function selection.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

True-rms technology improves accuracy in noisy environments
Measures AC/DC voltage to 1000 V, AC current to 600 A, plus resistance, frequency, capacitance, power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
Measures temperature from -58 °F to 1832 °F (-50 °C to 1000 °C)
Provides DC micro amps measurements to test flame sensors
Includes inrush current measurement and phase rotation indication for 3-phase motors
Non-contact voltage detection enhances safety
Low pass filter enables measuring voltage and frequency on variable frequency drives
Continuity beeper quickly identifies shorts and opens
Large backlit digital display with analog bar graph presents the full picture
Min, max and smart data hold
Peak hold identifies spikes and transients
In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
Auto power off conserves battery life
Maximum jaw opening accommodates large conductors up to 1.45? (37 mm)
Rubber overmold body absorbs shocks—drop proof to 4 feet (1.2 m)
CAT IV-rated

Additional Information

Manufacturer: Amprobe

Ecommerce Websites, Catalogs, and Marketing Services

We Do Not Sell Products

ACD-51NAV CAT IV 600 A TRMS Navigator Clamp Meter

3729950

Amprobe
