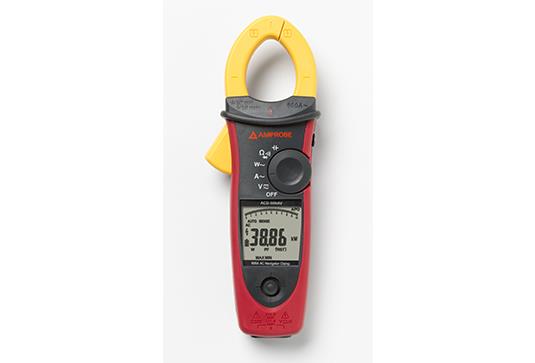

ACD-50NAV clamp-on power meter offers AC current measurements to 600 A, AC/DC voltage to 1000 V, and wide jaws to accommodate large conductors. This clamp-on multimeter is ideal for industrial power monitoring and verifying system conditions. It offers a full range of diagnostics including phase sequence, power and power factor, total harmonics distortion and individual harmonics, inrush current and low pass filter.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

True-rms technology improves accuracy in noisy environments
Measures AC/DC voltage to 1000 V, AC current to 600 A, plus resistance, frequency, capacitance, power factor, total harmonics distortion (THD) and individual harmonics from 1 to 25
Includes inrush current measurement and phase rotation indication for 3-phase motors
Non-contact voltage detection enhances safety
Low pass filter allows measurement of voltage and frequency of variable frequency drives
Continuity beeper quickly identifies shorts and opens
Large backlit digital display with analog bar graph presents the full picture
Min, max, and smart data hold
Peak hold identifies spikes and transients
In-jaw flashlight automatically lights when jaws open to illuminate dark panels and junction boxes
Auto power off conserves battery life
Maximum jaw opening accommodates large conductors up to 1.45? (37 mm)
Rubber overmold body absorbs shocks —drop proof to 4 feet (1.2 m)
CAT IV rated

Additional Information

Manufacturer: Amprobe
