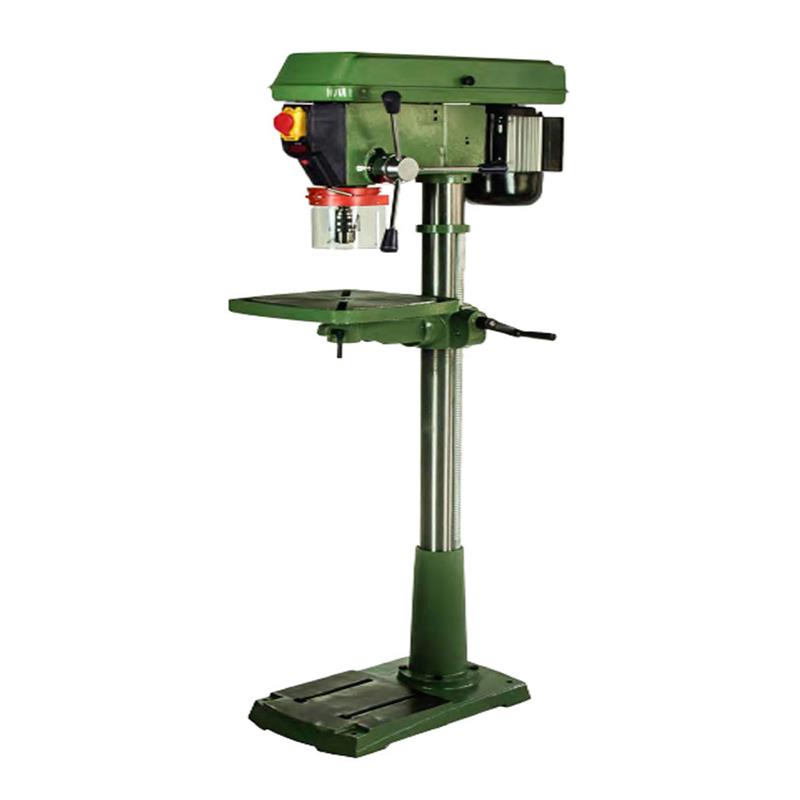

Forced opening line interrupter switch, requires machine restart in case of power failure or circuit interruption. Adjustable spindle tension return spring. Built-in laser pointer. Sturdy design with cast-iron head, base, and table. High-quality bearings for smooth, vibration-free operation. Simple hand lever controlled mechanical variable speed from 280 to 2100 rpm. Digital spindle speed display. 3/4 HP industrial-quality, 120 V motor, 6Amp. Equipped with easy to adjust dual depth stop for complete control of both down stroke depth and upstroke travel. 5/8? chuck with key & convenient onboard chuck key holder. Easy to use see-through flip-up chuck guard included. Crank-operated rack and pinion table height adjustment.

(click image to enlarge)

Quick Overview

Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.

Details

Swing: 17", Drilling Capacity: 1-1/8", Chuck Size: 5/8"
Spindle travel: 3-1/8", Spindle distance to table: 29" , Spindle distance to base: 48-5/8"
Table size: 13-3/16" x 13-3/16", Column Diameter: 3-1/8"
Spindle speeds: Variable- 280 to 2100 rpm, Spindle: MT3
Built in Laser Pointer
DRO For Spindle Speed
DRO For Spindle Speed
LED 'Gooseneck" light
17" Variable Speed Drill Press, (280-2100 RPM) Drill Press, 1HP 6.5 A, 5/8" Chuck,15" Swing
Limited 3 year warranty extendable to 5 yr if registered at www.general.ca

Additional Information

Manufacturer: General International

For More Information on the 17" Floor Commercial Mechanical Variable Speed Drill Press- 3/4 HP- 75-165 M1, [Click Here] to Link to Manufacturer Web Site
