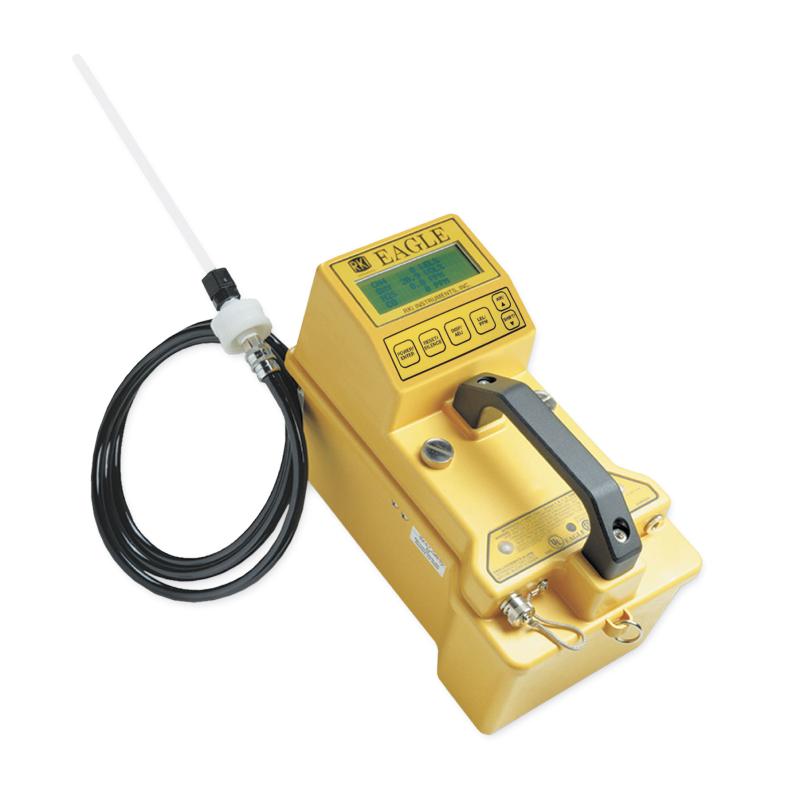

One to Six Gas Portable Monitor

EAGLE

RKI Instruments

RKI is proud to offer the most versatile portable gas detector on the market. Equipped with features that are not available on most competitive units, the EAGLE is a powerful instrument that does more than just offer the standard confined space protection for LEL, O2, H2S and CO. Detection combinations never before offered in a portable gas monitor are now available featuring the industry’s widest selection of high quality, long life and field proven sensors. Unique EAGLE features include PPM or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2, methane or hydrocarbons in LEL and % volume ranges; a methane elimination switch for environmental applications, a long list of super toxic gases and measurable ranges, and dual hydrophobic filters that increases its water resistant performance. The EAGLE has a strong internal pump with a low flow auto shut off and alarm, which can draw samples from up to 125 feet even with the dual hydrophobic filters in place. This allows for quick response and recovery from distant sampling locations. The EAGLE will continuously operate for over 30 hours on alkaline batteries or 18 hours on Ni-Cads. A variety of accessories are also available to help satisfy almost any application such as long sample hoses, special float probes for tank testing, datalogging, continuous operation adapters, remote alarms and strobes, and dilution fittings, just to name a few.
(click image to enlarge)
Quick Overview
    Simultaneous detection of up to 6 different gases Over 400 gas monitoring configurations Wide range of toxic gases PPM / LEL hydrocarbon detection Powerful long-life pump up to 125’ range with filters Low flow pump shut off and alarm Methane elimination switch for environmental use Security “Adjustment Lockout Switch” Up to 30 hours of continuous operation Alkaline or Ni-Cad capability IR Sensors available for CO2, % LEL CH4 or HC, % volume CH4 or HC Transformer testing version available Datalogging option Autocalibration / single gas calibration Dual hydrophobic filters (most versions) Ergonomic RFI / EMI / chemical / weather resistant enclosure Intrinsically safe design, CSA (C / US) & UL classified (most versions) Complies with EPA Method 21
Interested in this item or want more information?
Call Mon. through Fri. 8:00 AM - 5:00 PM PST
Phone: 714-573-4083
Email: sales@48ws.com

Can't find what you want? Give us a call and we can help you find it.
Details
Enclosure Weather resistant, chemical resistant, RF/EMI coated high impact polycarbonate polyester blend. Can be set in rain or into 2.5 inches of water without damage. Ergonomically balanced with rugged top mounted handle.
Dimensions 10.5" long x 5.9" x 7" tall
Weight 5 lbs.
Detection Principle Catalytic combustion, electrochemical cell, galvanic cell, and infrared.
Sensor Life 2 years under normal conditions.
Sampling Method Powerful, long-life pump (over 6,000 hours) can draw samples over 125 feet. Flow rate approximately 2.0 SCFH.
Display 4 x 20 LCD readout with backlighting. Viewed through window in case top. Displays readings & status of all channels simultaneously.
Alarms 2 alarms per channel plus TWA and STEL alarms. Fully adjustable for levels, latching or self reset and silenceable.
Alarm Method Buzzer 85dB at 30 cm, dual high intensity LED’s, and blinking display.
Controls 6 external push buttons for operation, demand zero, and autocalibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA /STEL values, battery status and many other features.
Continuous Operating Hours 30 hours minimum using alkaline batteries, or 18 hours using Ni-Cads.
Power Source Size D batteries, 4 alkaline or Ni-Cad. Charger has alkaline recognition to prevent battery damage if alkalines are charged.
Operating Temp. & Humidity -10°C to 40°C (14°F to 104°F), 0 to 95% RH, non-condensing.
Indication Accuracy Maximum variance +/- 5% of full scale.
Response Time 30 seconds to 90% (for most gases).
Safety Design Intrinsically Safe, Class I, Division 1, Groups A, B, C and D. CSA / NRTL & UL Classified (most versions).
Standard Accesories Shoulder strap, alkaline batteries, hydrophobic probe, and 5 foot hose (for special toxic gas versions, shorter teflon hose used without probe).
Optional Accessories • Datalogging of up to 4 gases (No datalogging possible on 5 or 6
gas versions or versions with more than 2 toxic sensors)
• Remote alarm
• Dilution fitting (50/50)
• Ni-Cad batteries
• Battery charger, 115 VAC, 220 VAC, or 12 VDC
• Continuous operation adapter, 115 VAC or 12 VDC
• Extra loud buzzer
• Extension probes
• External hydrophobic filter
Warranty One year material and workmanship

Specifications subject to change without notice.

Additional Information
Manufacturer: RKI Instruments
For More Information on the One to Six Gas Portable Monitor, [Click Here] to Link to Manufacturer Web Site
